HDMI IN 1--6 480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *1 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p, 1080/25p *2 1080/23.98p, 1080/24p VGA (640 x 480/60 Hz), SVGA (800 x 600/60 Hz), XGA (1024 x 768/60 Hz) WXGA (1280 x 800/60 Hz), SXGA (1280 x 1024/60 Hz) FWXGA (1366 x 768/60 Hz), SXGA+ (1400 x 1050/60 Hz) UXGA (1600 x 1200/60 Hz), WUXGA (1920 x 1200/60 Hz) * The refresh rate is the maximum value of each resolution. * Conforms to CEA-861-E,VESA DMT Version 1.0 Revision 11. * 1920 x 1200/60 Hz: Reduced blanking * The input interlaced video signal is converted to progressive video signal by internal processing. *1 Frame Rate = 59.94 Hz, 60 Hz *2 Frame Rate = 50 Hz
SDI IN 1--6 720/59.94p *1, *3 720/50p *1, *4 1080/59.94i, 1080/59.94p, 1080/60p, 1080/29.97p, 1080/30p *2, *3 1080/50i, 1080/50p, 1080/25p *2, *4 1080/23.98p, 1080/24p *2 * The input interlaced video signal is converted to progressive video signal by internal processing. *1 Output Format = 720p *2 Output Format = 1080i or 1080p *3 Frame Rate = 59.94 Hz, 60 Hz *4 Frame Rate = 50 Hz
File Format: MP4 Codec: H.264, target bitrate up to 20,000 kbps AAC LC, 16 bits, 48 kHz, stereo, target bitrate up to 384 kbps File Format: WAV Codec: Linear PCM, 16 bits, 48 kHz, stereo * If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simaltaneously. * If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously.
Video Player
File Format: MP4 (H.264, AAC), Average bit rate of 20,000 kbps or less, Maximum 1080/60p * If either the streaming and recording format or the file played by the video player exceeds 1080/30p, the streaming and recording and video player functions cannot be used simaltaneously. * If the bitrate setting for Streaming and Recording and the bitrate of the file played on Video Player exceeds 20,000 kbps, Streaming and Recording and Video player cannot be used simultaneously.
Still Image:
Bitmap File (.bmp) Maximum 1920 x 1080 pixels, 24-bit color, uncompressed. PNG File (.png) Maximum 1920 x 1080 pixels, 24-bit color JPEG File (.jpg, .jpeg) Maximum 1920 x 1080 pixels, 24-bit color * It can be stored up to 16 files in the internal memory. * It can be exported in the SD Card and USB flash drive. * PNG alpha channel supported.
Video Effects
Transition: Cut, Mix (Dissolve/Fam/Nam), WIPE (8 types), SPLIT (2 types) Composition: PinP x 4 (Square, Circle, Diamond), Keyer x 4 (Luminance Key, Chroma Key), DSK x 2 (Luminance Key, Chroma Key, Alpha Key, External Key) Others: Multi-View (3 types), Flip horizontal, Flip vertical, Still Image capture, Still Image playback, Output fade (Audio, Video: White or Black), Test pattern output, Stream Delay
AUDIO
Audio Processing
Sample rate: 24 bits, 48 kHz
Number of Audio Channels
42 channels
Audio Formats
USB STREAM (input/output): Linear PCM, 24 bits, 48 kHz, 2 ch Bluetooth (input): Linear PCM, 24 bits, 48 kHz, 2 ch HDMI IN: Linear PCM, 24 bits, 48 kHz, 2 ch HDMI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch SDI IN: Linear PCM, 24 bits, 48 kHz, 2 ch (Conforms to SMPTE 299M) SDI OUT: Linear PCM, 24 bits, 48 kHz, 8 ch (Conforms to SMPTE 299M)
Audio Player
File format: WAV (Linear PCM, 16 bits, 48 kHz/44.1 kHz, stereo) * It can be stored up to 16 tracks in the internal memory.
Audio Effects
Channel Effects: High pass filter, Echo canceller, Anti-feedback, Noise gate, De-esser, Compressor, 4-Band equalizer, Voice changer, Delay, Auto mixing Master Effects: Reverb, 4-Band equalizer, Compressor/Limiter, Loudness Auto Gain Control, Adaptive Noise Reduction, Low Frequency Cut, 15-Band GEQ, Delay Others: Output fade, Test tone output
COMMON SECTION
Recording Media
SDHC/SDXC card (sold separately) USB Memory (sold separately) * SDXC card is required for video recording.
Other Functions
Scene Memory (32 types) Macro Control (100 types) Sequencer Control (1000 types) Sequencer Control Panel lock function EDID Emulator Auto Switching Auto Input Detect Smart Tally Remote Camera Control (Up to 12 units) External Rec Control

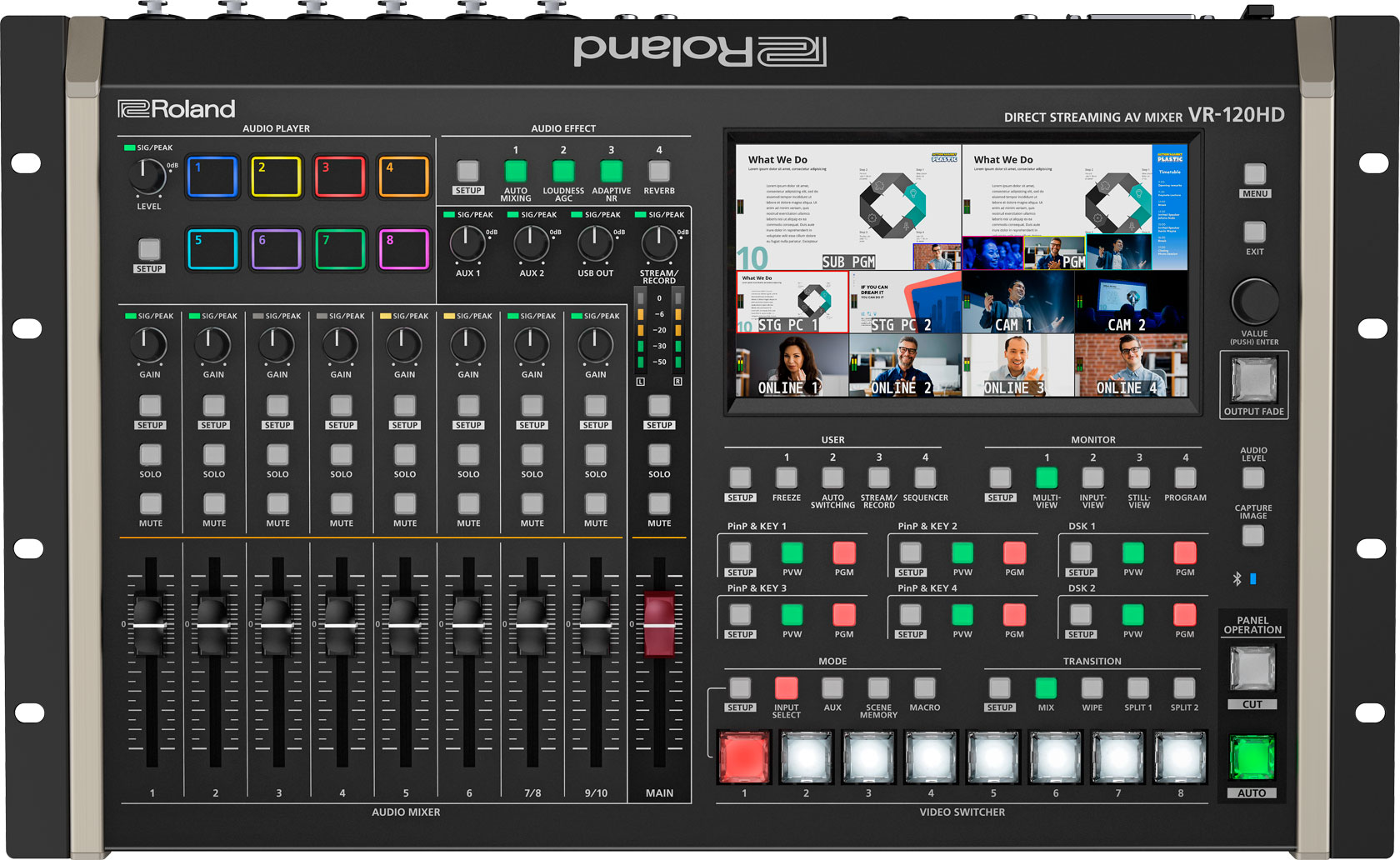

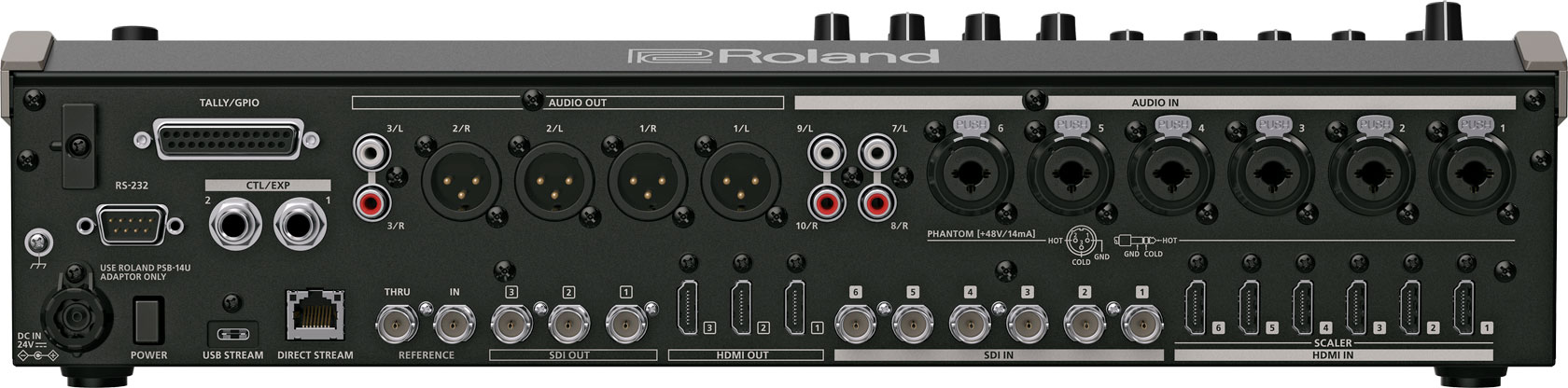

CONNECTORS
Video Input Connectors
HDMI IN 1--6: HDMI type A x 6 * HDCP Supported * Multi-format Supported
SDI IN 1--6: BNC type x 6 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
Video Output Connectors
HDMI OUT 1--3: HDMI type A x 3 * HDCP Supported
SDI OUT 1--3: BNC type x 3 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
USB STREAM: USB Type-C (TM)
Audio Input Connectors
Analog: AUDIO IN 1--6: Combo type (XLR, 1/4-inch TRS phone), phantom power DC 48 V (unloaded maximum), 14 mA (maximum load) AUDIO IN 7/L, 8/R: RCA phono type AUDIO IN 9/L, 10/R: RCA phono type
Digital: USB STREAM: USB Type-C (TM) Bluetooth HDMI IN 1--6: HDMI type A x 6 SDI IN 1--6: BNC type x 6
Audio Output Connectors
Analog: AUDIO OUT 1--4: XLR type AUDIO OUT 5--6: RCA phono type PHONES: Stereo 1/4-inch phone type, Stereo miniature phone type
Digital: USB STREAM: USB Type-C (TM) HDMI OUT 1--3: HDMI type A x 3 SDI OUT 1--3: BNC type x 3
Other Connectors
USB HOST: USB A type (for USB flash drive) USB STREAM: USB Type-C (TM) (for remote control from PC and iPad) Bluetooth: for remote control from iPad CTL/EXP 1, 2:1/4-inch TRS phone type (for remote control from foot switch and expression pedal) TALLY/GPIO: DB-25 type (Female)(Tally/GPO: 16, GPI: 8) RS-232: DB-9 type (Male) (for Remote Control) DIRECT STREAM: RJ45, 1000BASE-TX (for Live Streaming and Remote Control) Reference IN/THRU: BNC type * Black Burst (Sync to frames), Bi-Level, Tri-Level
AUDIO INPUT/OUTPUT CHARACTERISTICS
Input Level
AUDIO IN 1--6: -64--+4 dBu (Maximum: +24 dBu) AUDIO IN 7/L, 8/R: -10 dBu (Maximum: +10 dBu) AUDIO IN 9/L, 10/R: -10 dBu (Maximum: +10 dBu)
Input Impedance
AUDIO IN 1--6: 30 k ohms AUDIO IN 7/L, 8/R: 7 k ohms AUDIO IN 9/L, 10/R: 7 k ohms
